Name: P4 High-Definition Full-Color Large-Scale Electronic Advertising Display Screen Indoor Soft Film Group
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: SCXK-P5
Price: 10000.00 USD
Availability: InStock

Αρχική Σελίδα Προϊόντα Υπαίθρια πλήρες χρώμα οδήγησε εμφάνισης

P4 High-Definition Full-Color Large-Scale Electronic Advertising Display Screen Indoor Soft Film Group

Λεπτομέρειες:

Place of Origin:	Made in china
Μάρκα:	SCXK
Πιστοποίηση:	CE,ROHS, FCC.UL.CUL
Model Number:	SCXK-P5

Πληρωμής & Αποστολής Όροι:

Minimum Order Quantity:	one cabinet sand one module can be avaiable.
Τιμή:	Διαπραγματεύσιμα
Packaging Details:	wooden box, flight case, paper box can be available( All kinds of the box will guarantee the safety of the led display
Delivery Time:	within 7-10days, the led disdplay can be sent to you after your payment
Payment Terms:	D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Επικοινωνία

Λεπτομερής Περιγραφή Προϊόντος

Material:	iron and steel cabinet	cabinet size:	640mm x640mm
module size:	160mm x160mm	warranty:	3 years
led light:	SMD2727	Led chip:	Epistar
Color:	Full color	dot density:	62500dots/sqm

Manufacturers supply LED display outdoor P5 HD full color large-scale electronic advertising display large Led screen

Quick details

Our factory has our own characteristic culture.It is full of passion,warmth,has our own sunshine motto,every worker in this firm is not only workmate,what's more,we are friends,the friendship is rich,all the staff try their best to work everyday.Our work slogan is:Work warmly,live happily;The spirit is:Strictly demanding,Consciously dedication;The goal is:Customer front,Service first;Service idea:Service loyally,live Wonderfully;We believe that SCXK will be bigger and bigger with our effort near future.Welcome to experience it.

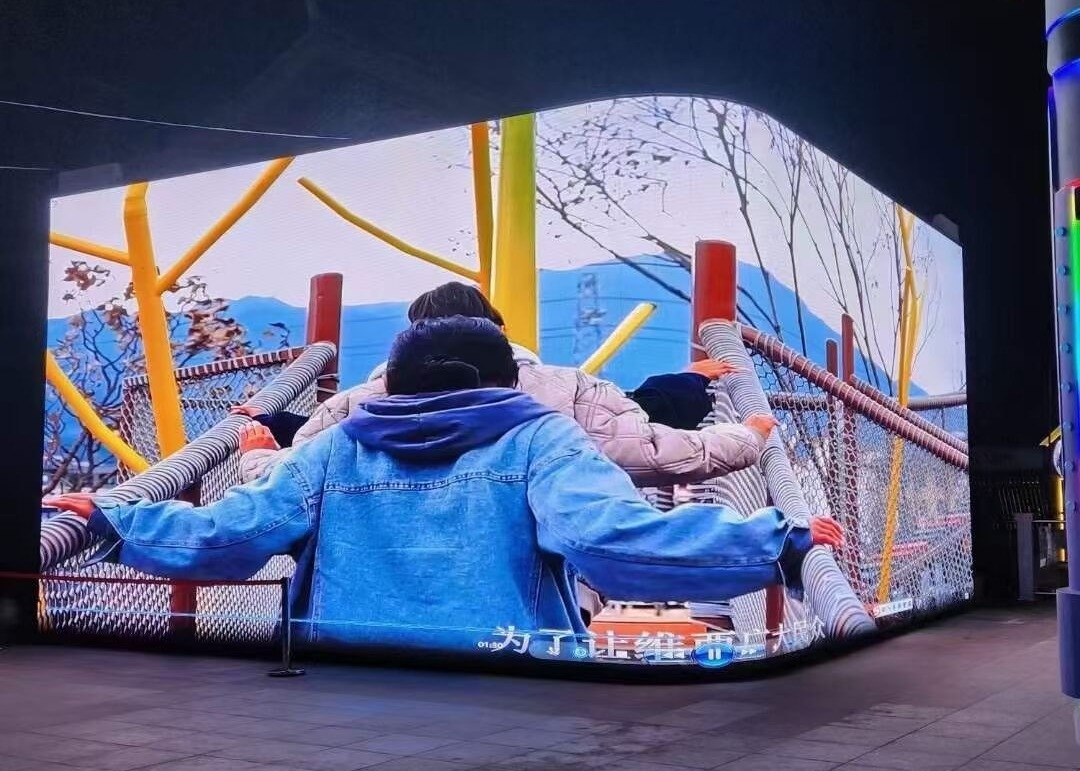

Project case

Specification as follows.

LED Lamps	Type	SMD2121(High Brightness LEDs)
	LED Standard	Real Pixel(1R1G1B)
	Red Wavelength	625-630nm
	Green Wavelength	515-530nm
	Blue Wavelength	465-475nm
LED Module	Pixel Pitch	4mm
	Module Size	256mm x128mm
	Module Resolution	64*32dots
LED Cabinet	Cabinet Size	512mmx512mm
	Cabinet Resolution	128dotsx128dots
	Cabinets Material	iron and steel cabinet
LED Display	Pixel Density	62500pixels/sq.m
	Drive IC	MBI5024
	Power Supply	Series connection
	Brightness	>2000cd/sqm
	Display Color	16.7million
	Viewing Angle	160°(Horizontal),110°(Vertical)
	Best Viewing Distance	4m~200m
	Max Power Consumption	600 w/sq.m
	Average Power Consumption	300 w/sq.m
	Weight	22kgs/sq.m
	Refresh Rate	2500hz
	Input Voltage	AC220V/50H or AC110V/60H
	Output Voltage	DC5V,40A
	Grey Scale Levels	16bit
	Display Colors	R(1024) x G(1024) x B(1024)
	MTBF	10,000 hours
	Life-span	100,000 hours
	Protection Level	IP43
	Failure percentage of leds	less than 0.0003
	Working Temperature	-25℃-60℃
	Drive Mode	1/32 scaning
	Working Humidity	10%~99%
Control System	Control method	Synchronization & Asynchronization
	Control System	(software) Led studio
	Software	LED studio
	Input Signal	MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RM/ASF/BMP/GIF/PCX/TXT/DOC.etc
	PC Operating system	Microsoft Windows 7, 98, 2000, XP and Vista

P4 High-Definition Full-Color Large-Scale Electronic Advertising Display Screen Indoor Soft Film Group 2
Competitive advantage

Q1. What's the warranty of your LED Display Screen ?
A1. We have a 3-years warranty for our led display screen, and 100,000 hours life span of the led lamps.
Q2. What about your pre-sale service and post-sale service?

A2. For pre-sale service. We have a professional sales team and a 8 years technical team who are willing to answer your question 24/7.We can offer a whole complete solution for your project!

Another style still can be available.

Indoor full color SMD 3 in 1 led display
P2 Iron cabinet	1/32scan	256x128	128x64dots	250000dots	512x512	$1,905.50	wooden packaged
P2 die cast aluminum	1/32scan	256x128	128x64dots	250000dots	512x512	$2,301.50	flight case package
P2.5 Iron cabinet	1/16scan	160x160	64x64dots	160000dots	640x640	$1,111.50	wooden packaged
P2.5 die cast aluminum cabinet	1/16scan	160x160	64x64dots	160000dots	480x480	$1,195.50	flight case package
P3 Iron cabinet	1/32scan	192x192	64x64dots	111111dots	576x576	$795.50	wooden packaged
P3 die cast aluminum cabinet	1/32scan	192x192	64x64dots	111111dots	576x576	$842.50	flight case package
P3.91 Die cast aluminum (smd)	1/16scan	250X250	64x64dots	65410 dots	500X500	$795.50	flight case package
P4 iron cabinet(smd)	1/16scan	256X128	64x32dots	62500dots	768x768	$603.50	wooden packaged
P4 die cast aluminum cabinet (smd)	1/16scan	256x128	64X32dost	62500dots	512x512	$655.50	flight case package
P5 Iron cabinet	1/16scan	320x160	64x32dots	40000dots	640x640	$480.50	wooden packaged
P5 die cast aluminum cabinet	1/16scan	320X160	64X32dots	40000dots	640x640	$555.50	flight case package
P6 iron cabinet	1/16scan	384x192	64X32dost	27777 dots	768x768	$398.50	wooden packaged
P6 die cast aluminum cabinet	1/16scan	192X192	32x32dots	27777dots	576x576	$478.50	flight case package
p10 iron cabinet	1/8scan	320x160	32x16dots	10000dots	960x960	$350.50	wooden packaged
All the pricelist include the control system,3 years warranty!(we will send some spare parts based on your order

For after-sale service. We can instruct you how to use, adjust the screens, and change the boken modules with spare parts. For asynchronous control We use Onbon, or Xixun control system.

P4 High-Definition Full-Color Large-Scale Electronic Advertising Display Screen Indoor Soft Film Group 3

So far ,we have many different project for our oversea market. And the P4 is very high defintion .If you have any question or confusion, just feel free to contact us.We will give you all kinds of assistance and supports.
