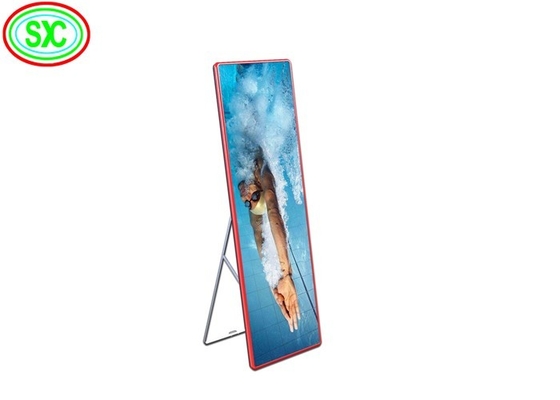

Οθόνη LED Poster P3 LED Shopping Mall Indoor Full Color LED Display
* Συμβουλές πριν την πώληση:
Η ομάδα μας σχεδιάζει και δημιουργεί λύσεις σύμφωνα με τις διαφορετικές απαιτήσεις από διαφορετικούς πελάτες.
Επικοινωνήστε μαζί μας για λεπτομέρειες.
Πριν σας προσφέρουμε την καλύτερη προσφορά, θα θέλαμε να επιβεβαιώσουμε ορισμένες λεπτομέρειες εάν δεν σας πειράζει:
1. Ποιο είναι το μέγεθος της οθόνης;
2. Ποια είναι η καλύτερη απόσταση θέασης για το έργο σας;
3. Πού θα το εγκαταστήσετε; Σταθερή ή ενοικιαζόμενη εγκατάσταση;
4. Πότε χρειάζεστε να παραλάβετε τα εμπορεύματα; Είναι επείγον;
5. Οποιεσδήποτε άλλες απαιτήσεις;
Ταυτόχρονα, παρακαλούμε πείτε μας τον τρόπο επικοινωνίας σας.
* After-sales service:
Έχουμε ένα επαγγελματικό προσωπικό τεχνικής εξυπηρέτησης μετά την πώληση, θα λύσει όλα τα προβλήματά σας για την ημέρα ή τη νύχτα.
Προσφέρουμε 3 χρόνια, 5 χρόνια, 8 χρόνια μεγάλη εγγύηση. Εγγύηση για το σώμα της οθόνης και όλα τα ανταλλακτικά.
* install service:
Παρέχετε πλήρες βίντεο λειτουργίας εγκατάστασης, εύκολο στην εκμάθηση.
Ή παρέχετε απομακρυσμένη βοήθεια.
Για μεγάλες ανάγκες μεγέθους του έργου, μπορούμε να στείλουμε ένα δωρεάν τεχνικό προσωπικό, επιτόπια εγκατάσταση.
* Product specification
| indoor SMD P3 |
| Lamp size |
2121 |
| Resolution/mm |
3 |
| Pixel configuration |
RGB 3 σε 1 |
| Pixel density/pixels/m² |
111111/m² |
| Module resolution |
64x64 |
| Module size/mm |
192*192 |
| View distance |
≥0.5m |
| Single point brightness adjust |
Can be added |
| Single point color adjust |
Can be added |
| White balance brightness |
>2500cd/㎡ |
| Color temperature |
6500K-9500K |
| Horizontal view angle |
120(degrees) |
| Vertical view angle |
60(degrees) |
| Signal Process bit |
10 or 14 bit |
| Grey process |
1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances |
Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode |
Constant driving current |
| Scanning mode |
1/16 |
| Frame rate |
60Hz |
| Refresh frequency |
>4200Hz |
| Control mode |
Computer synchronous |
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
|
| Out of control point |
<1> |
| Working hours |
≥72hours |
| Mean Time Between Failure |
>5000hours |
| Life time |
100000hours |
| Life-all-white(brightness halving) |
50000hours |
| Environment temperature range |
Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ |
| Maximum power:/㎡ |
<1000W |
| Average power:/㎡ |
<280W |
| Self-check technology |
LED spot self-check, communications check, power check,
temperature monitor(need customization)
|
| Remote monitoring |
Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
|
| Software environment |
WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres |
Deviation<3% |
| Brightness uniformity |
<10% |
| Color uniformity(chromaticity coordinate) |
±0.003 |
| Power supply request |
AC85-264V(50Hz-60Hz) |
| Contrast |
(1000:1) |
| System protection |
Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) |
working:10-95% |
| Humidity(storing) |
storing:10-95% |
Product Overviews
| Items |
Indoor Led display:
p1.5, P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25 |
| Material |
steel,aluminum ,die casting aluminum |
Payment
terms |
30% deposit before production, 70% balance before shipping |
| T/T |
| Western Union |
| Packing: |
Standard Export Carton with fully Polyfoam or Pearl Wool |
| Flight case; |
| Anti-shaking wooden case |
| Shipping: |
5 to 7 working days upon receiving deposit payment |
| After-Sales-Service: |
Lifetime with professional engineer support for free. |
Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage) |
| Using Range |
Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on. |
* Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
* Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality goods.
* Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
* Methods for Quality Assurance
a. Aging
1) 100% fully test
2) Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
* Why choose us:
Continues Quality
With more than 12 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
Our team will be forever here to offer you full supports !!!
